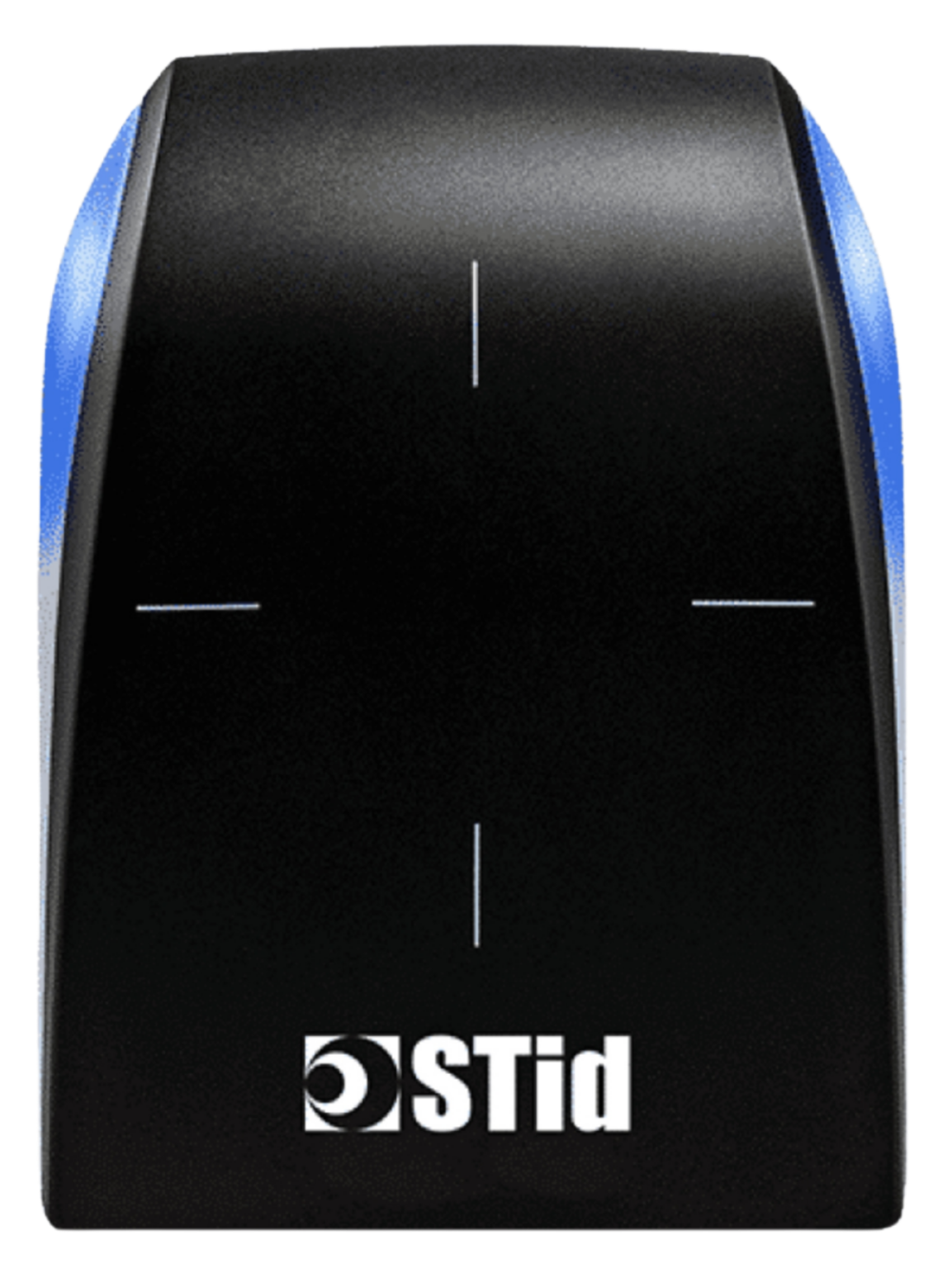

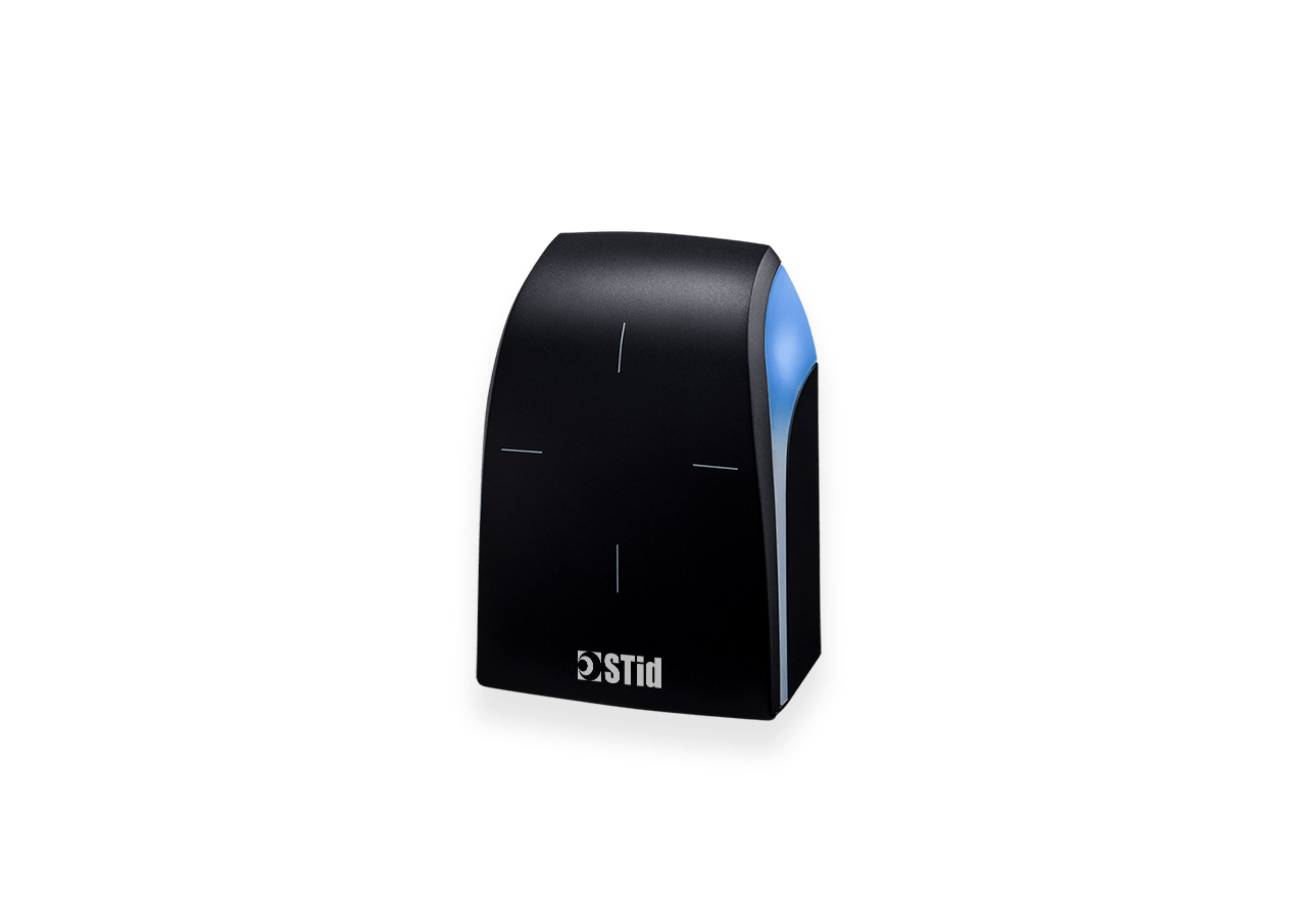

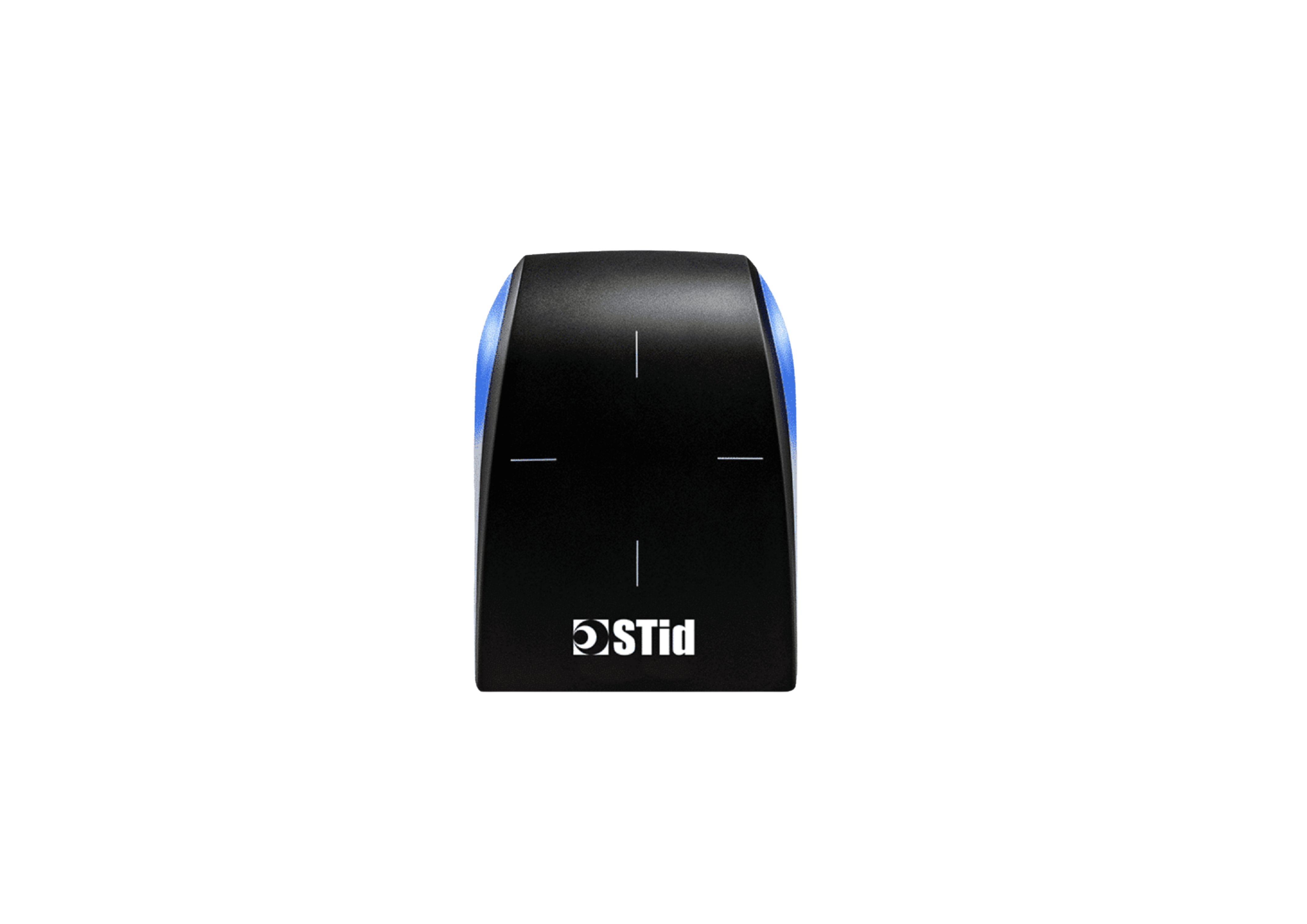

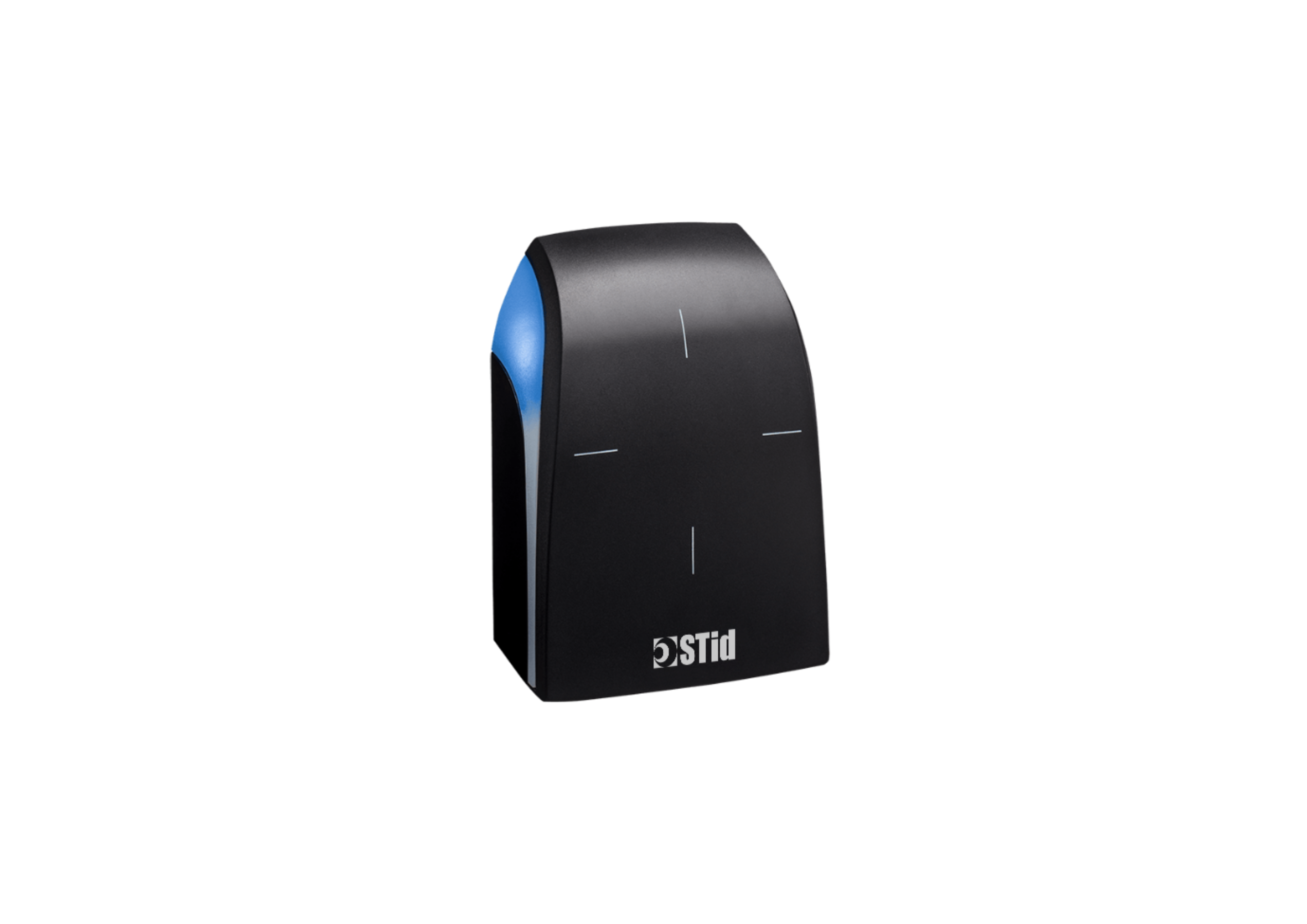

Arc-a
13.56 MHz: ISO14443 A and B, ISO18092
MIFARE Ultralight & Ultralight C, MIFARE Classic & Classic EV1, MIFARE DESFire 256, EV1, EV2 & EV3, NFC (HCE)
Key features
Operating frequency / standards
13.56 MHz: ISO14443 A and B, ISO18092
Compatible credentials
MIFARE Ultralight & Ultralight C, MIFARE Classic & Classic EV1, MIFARE DESFire 256, EV1, EV2 & EV3, NFC (HCE)
Functions
Protocol-controlled (credential read/write, feedback)
Communication interface / protocol
SSCP® v2 high-security communication protocol (RS485)
Reading distance
Up to 6 cm with MIFARE® DESFire® EV2 card
Visual feedback
2 RGB LEDs - 360 colors, configurable by software
Audio feedback
Built-in buzzer
Power consumption / supply
130 mA / 12 VDC max / from 7 VDC to 28 VDC
Connection
with pluggable terminal block
Housing material
ABS-PC UL-V0 (black) / ASA-PC-UL-V0 UV (white)
Dimensions (h x w x d)
106.6 x 80 x 25.7 mm
Operating temperature
From -30°C to +70°C
Tamper switch
Accelerometer-based tamper sensor
IP and mechanical protection
IP65 rated - with protective coating compliant with EN 61086 - weather-, water-, and dust-resistant / Humidity: 0-95% / IK10-certified vandal-resistant reinforced housing
Mounting
Wall-mountable on all types of surfaces, including metal.
Certifications
CE (Europe), FCC (USA), IC (Canada), UKCA (United Kingdom), and UL
Manufacturer designation
ARC-W33-A/PH5-7AD/y (where y indicates the housing color: 1 = black, 2 = white)
